SM4RT: Learning Structured Motion Geometry for 4D Reconstruction

Shing Ho J. Lin*

Wenzhao Zheng^{*, †}

Dong Zhuo*

Yuqi Wu

Jie Zhou

Jiwen Lu

Intelligent Vision Group, Tsinghua University

^*Equal Contributions ^†Project Leader

Paper (arXiv) Code

Visualization of Our Method

(Point Clouds are Downsampled 4 Times for Efficiency)

SM4RT Video

Loading video...

SM4RT Synchronized 3D Point Cloud

🎬swing/frame_*.ply📁 0 frames

0 / 0

Speed1.0x

Point Size0.02

Method Comparison

(Point Clouds are Downsampled 4 Times for Efficiency)

SM4RT Ours Video

Loading SM4RT...

swing Preparing...

4RC Video

Loading 4RC...

swing_4rc Preparing...

1 / 24

Speed 1.0x Point Size 0.02

Overview: From Geometry-with-Motion to Geometry-of-Motion

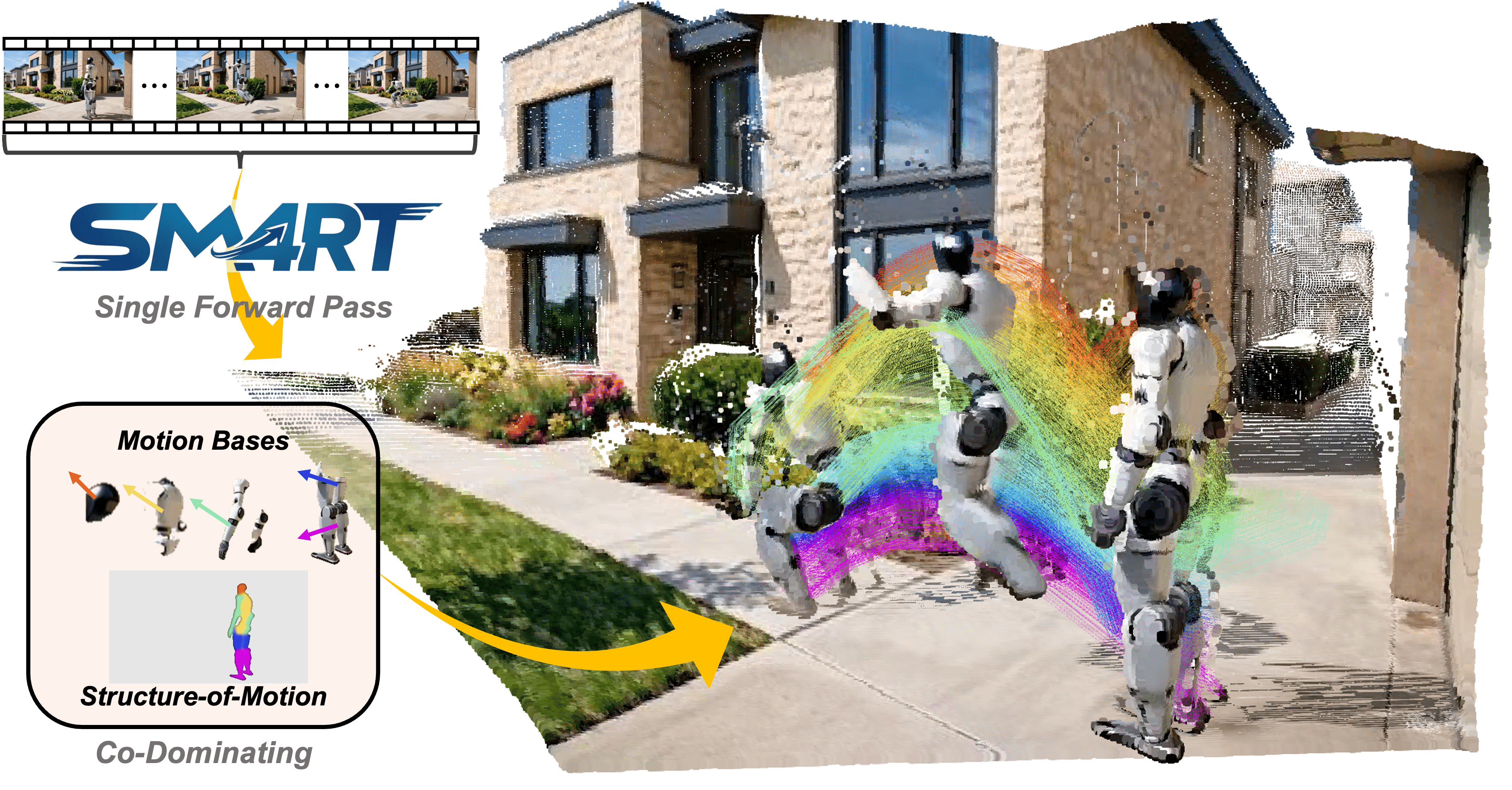

Figure 1: SM4RT decomposes scene motion into structured latent bases.

Recent advances in Geometry Foundation Models (GFMs) have demonstrated remarkable capability in reconstructing 3D scene geometry from monocular video. With static geometry reconstruction now approaching practical fidelity, the next frontier is 4D dynamic understanding which jointly infers scene structure and the underlying motion.

We propose SM4RT, a Structured Motion 4D Reconstruction Transformer framework. Rather than predicting independent point-wise displacements, SM4RT introduces Structure-of-Motion (SoM): scene motion is composed of a compact set of N latent motion bases, each represented as a temporal sequence of 6D se(3) transforms.

Motivation1: Humans perceive motion via sparse kinematic cues—not at the pixel level, but at the level of objects and parts. Real-world objects usually obey rigid-body kinematics: points move collectively, not in isolation.

Motivation2: Motion exhibits geometric structure as fiber bundle, formalizing scene dynamics as a principal bundle whose local sections correspond to valid rigid-body motions, ensuring that point-wise displacements respect the underlying topological and kinematic constraints.

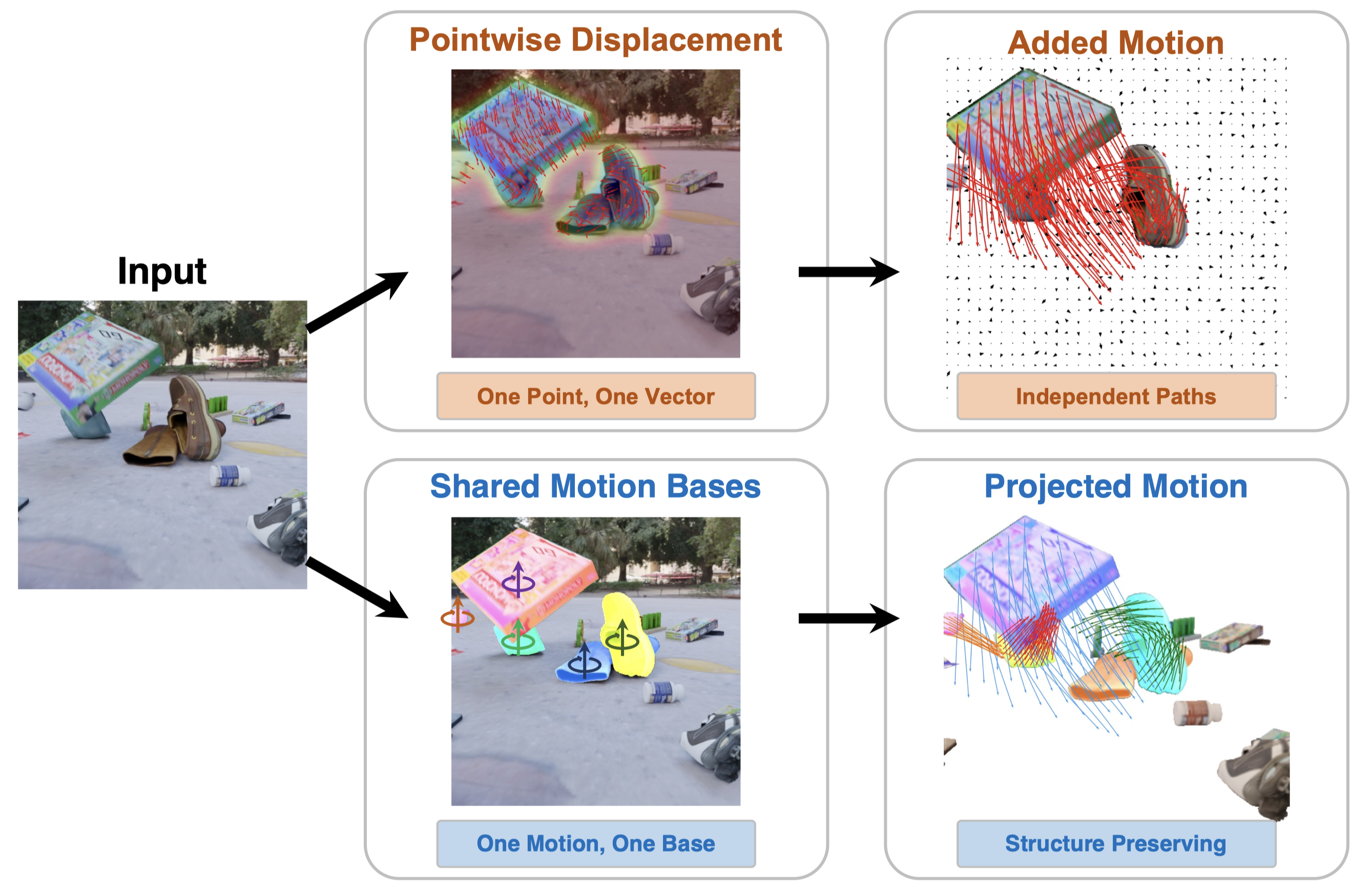

Figure 2: Comparison of motion representations. The proposed representation preserves the structure of object motion, providing a more structured description than standard per-pixel displacement and encouraging intra-object homogeneity.

Overall Framework of SM4RT

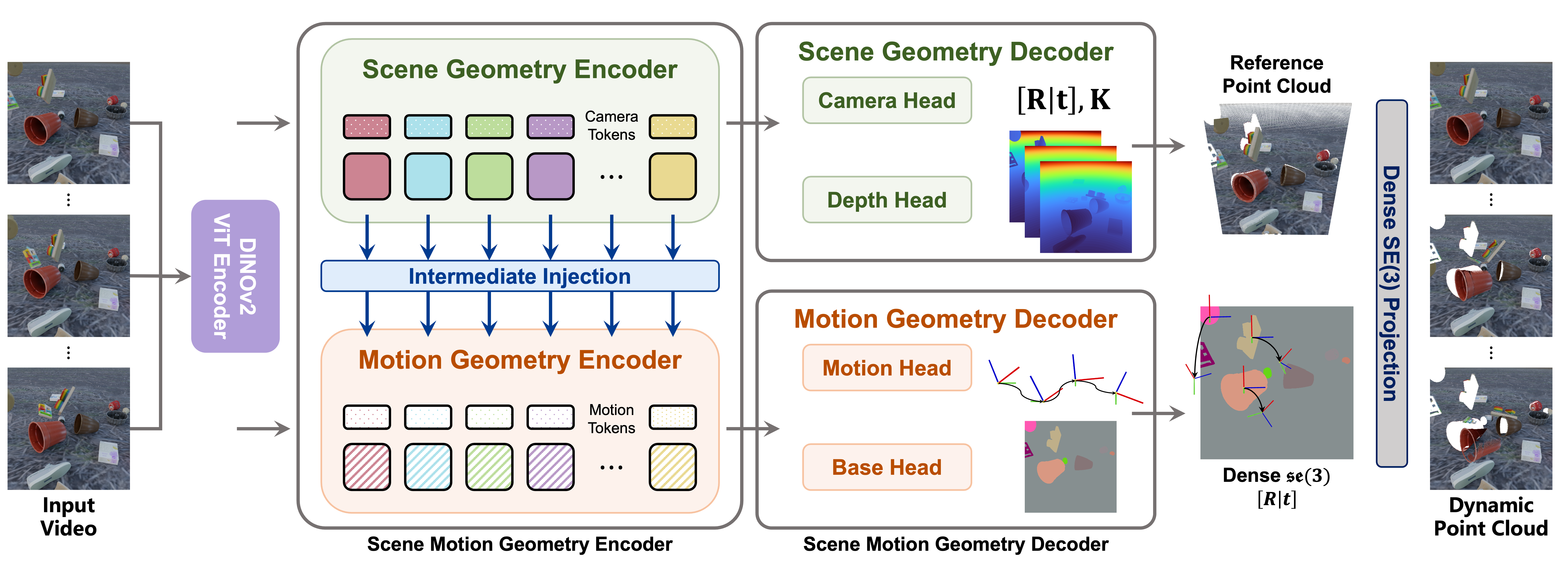

Figure 3: Architecture of SM4RT.

Given a monocular input video, SM4RT extracts latent geometry tokens with a DINOv2 backbone, then decouples them into scene geometry and motion geometry tokens. The scene decoder predicts camera parameters and depth, while the motion decoder estimates sparse se(3) transforms and motion base weights for dense SE(3) projection.

Quantitative Results

Table 1: Video Depth Estimation

AbsRel (↓) and δ_<1.25 (↑).

Method	Bonn		Sintel		KITTI
	AbsRel	δ	AbsRel	δ	AbsRel	δ
MonST3R	0.072	95.48	0.309	54.23	0.095	91.59
DepthAnythingV3	0.046	97.38	0.186	70.66	0.052	97.35
SM4RT (Ours)	0.054	97.49	0.169	75.51	0.056	97.20

Table 2: 3D Reconstruction (Pose/Rec.)

Model	HiRoom		ETH3D		DTU
	Pose	Rec.	Pose	Rec.	Pose	Rec.
Pi3	66.88/94.78	67.68	35.30/87.30	71.61	62.54/94.82	3.388
4RC	85.53/98.13	86.53	37.79/89.97	71.97	92.07/99.20	1.380
SM4RT (Ours)	86.16/98.36	89.89	43.88/91.56	74.86	93.30/99.32	1.153

Table 3: World-Coordinate Tracking

Average Percent of Points within Delta (APD) and End-Point Error (EPE), reported as All / Dynamic. Predictions are aligned using Global Alignment over 64 frames.

Model	ADT		DS		PO		PStudio
Model	APD	EPE	APD	EPE	APD	EPE	APD	EPE
MonST3R	74.35 / 67.92	0.2721 / 0.1578	58.06 / 51.86	0.4387 / 0.5313	33.47 / 39.36	0.9021 / 0.6452	51.32 / 51.32	0.4568 / 0.4568
SpatialTracker	45.65 / 67.65	0.8530 / 0.1628	54.85 / 58.65	0.9274 / 1.0828	38.54 / 51.20	0.7499 / 0.4695	62.59 / 62.59	0.3094 / 0.3094
St4RTrack	76.00 / 75.34	0.2680 / 0.1212	73.74 / 68.13	0.2682 / 0.2961	67.94 / 68.71	0.3140 / 0.2970	69.67 / 69.67	0.2637 / 0.2637
TraceAnything	76.08 / 73.05	0.2469 / 0.1268	60.66 / 61.23	0.5756 / 0.4422	39.84 / 47.39	1.0595 / 0.7224	71.32 / 71.32	0.2727 / 0.2727
Any4D	58.65 / 70.66	0.4048 / 0.1313	79.08 / 68.81	0.2203 / 0.3112	66.20 / 66.55	0.3741 / 0.3991	64.44 / 64.44	0.2977 / 0.2977
VDPM	85.96 / 72.10	0.1666 / 0.1359	74.27 / 77.66	0.2548 / 0.2123	81.10 / 82.39	0.1907 / 0.1708	78.73 / 78.73	0.1812 / 0.1812
4RC	83.22 / 72.27	0.1905 / 0.1422	82.17 / 73.92	0.1946 / 0.2747	79.35 / 75.94	0.2762 / 0.3517	70.91 / 70.91	0.2443 / 0.2433
(Open)D4RT	72.20 / 73.25	0.2758 / 0.3199	72.48 / 74.88	0.2959 / 0.2755	67.99 / 74.25	0.3178 / 0.2593	79.60 / 79.60	0.1753 / 0.1753
SM4RT (Ours)	88.56 / 80.68	0.1339 / 0.0935	82.61 / 71.62	0.1918 / 0.2912	81.62 / 73.68	0.2578 / 0.3808	78.69 / 78.69	0.1790 / 0.1790

More Visualizations

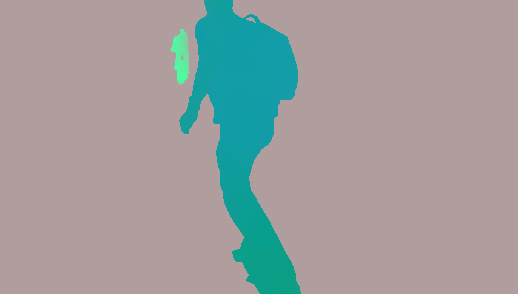

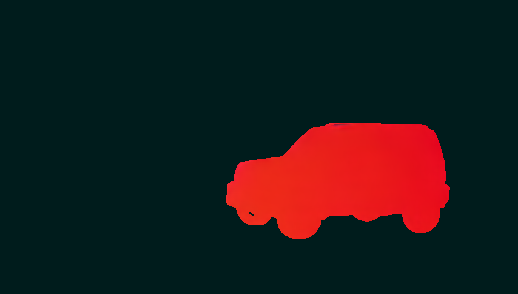

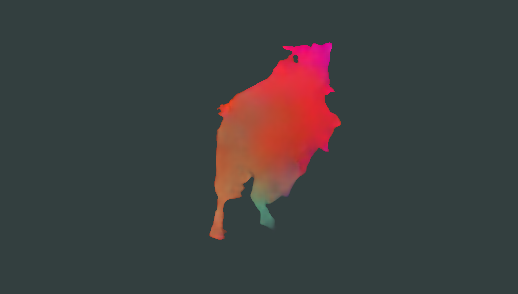

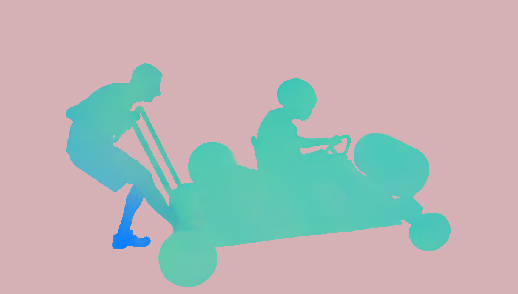

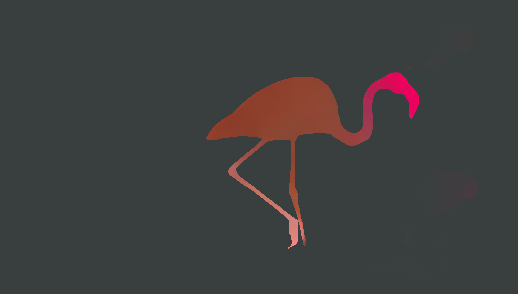

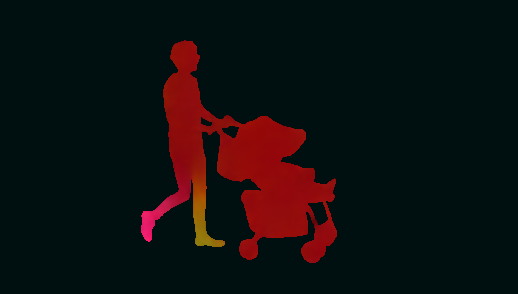

Motion Base Visualization

Check whether regions with similar colors share similar kinematics.

More Comparisons

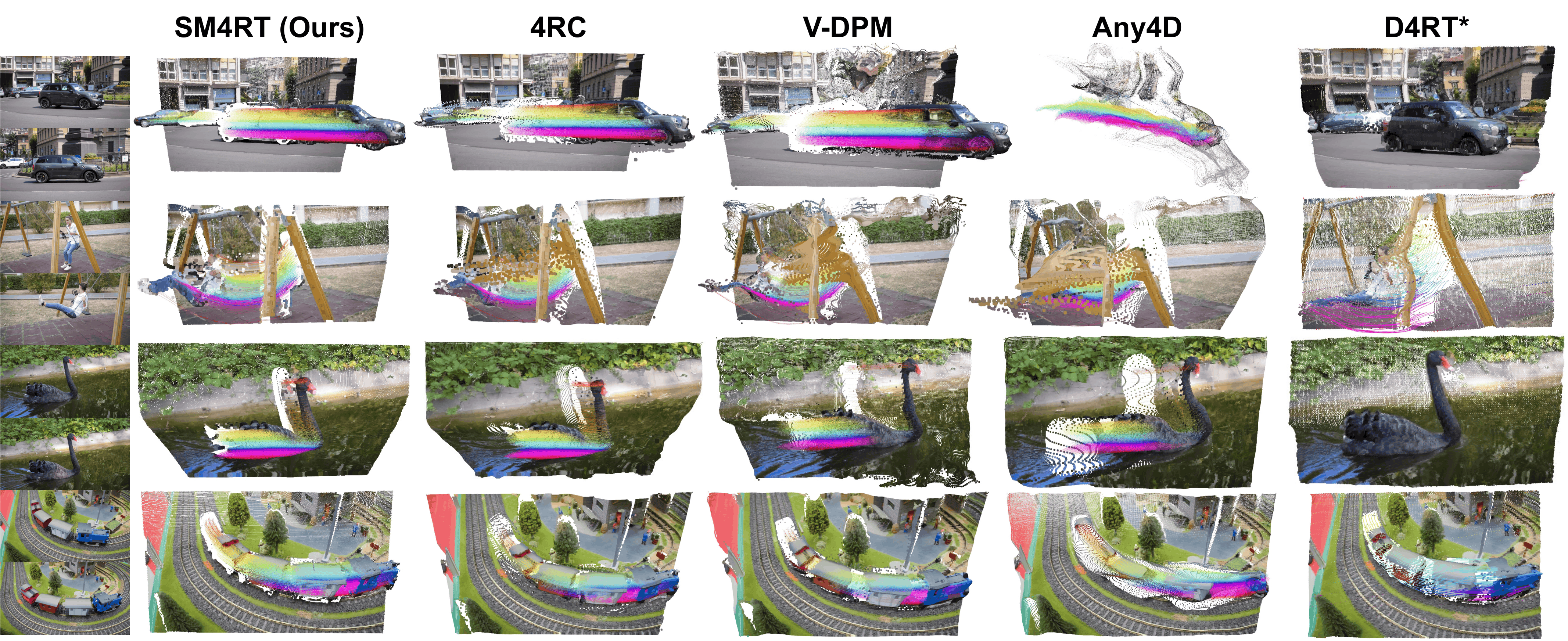

Figure 4: Static Comparison of Tracklines. Our method obtains more structured motion compared with others, especially in background staticness.

Citation

@article{sm4rt,
  title={SM4RT: Learning Structured Motion Geometry for 4D Reconstruction},
  author={Lin, Shing Ho J. and Zheng, Wenzhao and Zhuo, Dong and Wu, Yuqi and Zhou, Jie and Lu, Jiwen},
  journal={arXiv preprint: arXiv 2607.},
  year={2026}
}
